Trim Envelope

Calculate the set of trim points for an aircraft over a range of airspeeds and range of flight path angles \(\gamma\). The required thrust and AoA is indicated via a colormap for each trim point.

[1]:

import sys

if 'google.colab' in sys.modules:
    print('Running on Google Colab – installing jsbsim …')
    !pip install jsbsim

PATH_TO_JSBSIM_FILES = None

Initialize FDM

[2]:

import jsbsim

# --- JSBSim Initialization ---
# These lines initialize the flight dynamics model.

# Create a flight dynamics model (FDM) instance.
fdm = jsbsim.FGFDMExec(PATH_TO_JSBSIM_FILES)

fdm.set_debug_level(0) # Suppress verbose JSBSim console output

if fdm is not None:
    print("FDM created successfully")
    fdm.set_debug_level(0) # Suppress verbose JSBSim console output
else:
    print("Failed to create FDM")



     JSBSim Flight Dynamics Model v1.3.0 Apr  9 2026 10:00:08
            [JSBSim-ML v2.0]

JSBSim startup beginning ...

FDM created successfully

Tweak aircraft XML file: remove `<input/>` nodes from the officially released files

[3]:

import os
import xml.etree.ElementTree as ET

AIRCRAFT_NAME="737"

ac_xml_file_path = os.path.join(fdm.get_root_dir(), f'aircraft/{AIRCRAFT_NAME}/{AIRCRAFT_NAME}.xml')
print(f"Aircraft original XML file: {ac_xml_file_path}")

print("Parsing XML ...")
ac_xml_tree = ET.parse(ac_xml_file_path)

# Save a copy of the original XML file for backup
backup_xml_file_path = ac_xml_file_path.replace('.xml', '_backup.xml')
print(f"Saving backup XML file: {backup_xml_file_path}")
ac_xml_tree.write(backup_xml_file_path)

# Parse the XML and get the root element
ac_xml_root = ac_xml_tree.getroot()
# Remove <input ... /> occurrences with a 'port' attribute
for x in ac_xml_root.findall('input'):
    has_port = x.get('port') is not None
    if has_port:
        print(f"\tRemoving <input ... /> with port: {x.get('port')}")
        ac_xml_root.remove(x)

print(f"Saving modified XML: {ac_xml_file_path}")
ac_xml_tree.write(ac_xml_file_path)

#check that the input occurrences are removed
ac_xml_tree2 = ET.parse(ac_xml_file_path)
ac_xml_root2 = ac_xml_tree2.getroot()
inputs = ac_xml_root2.findall('input')
if not inputs:
    print("All <input ... /> occurrences successfully removed.")
else:
    print(f"Warning: Found {len(inputs)} <input/> occurrences remaining.")

Aircraft original XML file: /home/vscode/.local/lib/python3.11/site-packages/jsbsim/aircraft/737/737.xml
Parsing XML ...
Saving backup XML file: /home/vscode/.local/lib/python3.11/site-packages/jsbsim/aircraft/737/737_backup.xml
Saving modified XML: /home/vscode/.local/lib/python3.11/site-packages/jsbsim/aircraft/737/737.xml
All <input ... /> occurrences successfully removed.

Initialize the JSBSim executable

[4]:

import matplotlib.pyplot as plt

if fdm is not None:
    print("FDM instance found, proceeding with model loading...")
    # Load the aircraft model
    if fdm.load_model(AIRCRAFT_NAME):
        print(f"Aircraft model '{AIRCRAFT_NAME}' loaded successfully")
    else:
        print(f"Failed to load aircraft model '{AIRCRAFT_NAME}'")
else:
    print("FDM instance not found, cannot load aircraft model")

FDM instance found, proceeding with model loading...
Aircraft model '737' loaded successfully

Work on trim conditions

[5]:

import math

# Set engines running
fdm['propulsion/set-running'] = -1

# --- Simulation Parameters ---
# These lines set the simulation parameters.

# Set alpha range for trim solutions
fdm['aero/alpha-max-rad'] = math.radians(12)   # Maximum angle of attack in radians.
fdm['aero/alpha-min-rad'] = math.radians(-4.0) # Minimum angle of attack in radians.

# Set envelope limits
min_speed = 120   # Set the minimum calibrated airspeed (kts).
max_speed = 460   # Set the maximum calibrated airspeed (kts).
altitude = 15000  # Set the altitude (ft).
min_gamma = -10   # Set the minimum flight path angle (deg).
max_gamma = 10    # Set the maximum flight path angle (deg).

# Trim results
results = []  # Initialize an empty list to store the trim results.


# --- Simulation running ---
# These lines run the simulation for each conditions.

# Iterate over a range of speeds and for each speed a range of flight path angles (gamma)
# and check whether a trim point is possible
for speed in range(min_speed, max_speed, 10):
    for gamma in range(min_gamma, max_gamma, 1):
        # set the initial conditions
        fdm['ic/h-sl-ft'] = altitude  # altitude above sea level (ft)
        fdm['ic/vc-kts'] = speed      # calibrated airspeed (kts)
        fdm['ic/gamma-deg'] = gamma   # flight path angle (deg)

        # Initialize the aircraft with initial conditions
        fdm.run_ic()

        # Trim the aircraft.
        try:
            # 1 means straight flight by using all changeable control variables.
            fdm['simulation/do_simple_trim'] = 1

            # Append the airspeed, AoA, gamma, and throttle to the results list.
            results.append((fdm['velocities/vc-kts'], fdm['aero/alpha-deg'], gamma, fdm['fcs/throttle-cmd-norm[0]']))

        except jsbsim.TrimFailureError:
            pass  # Ignore trim failures

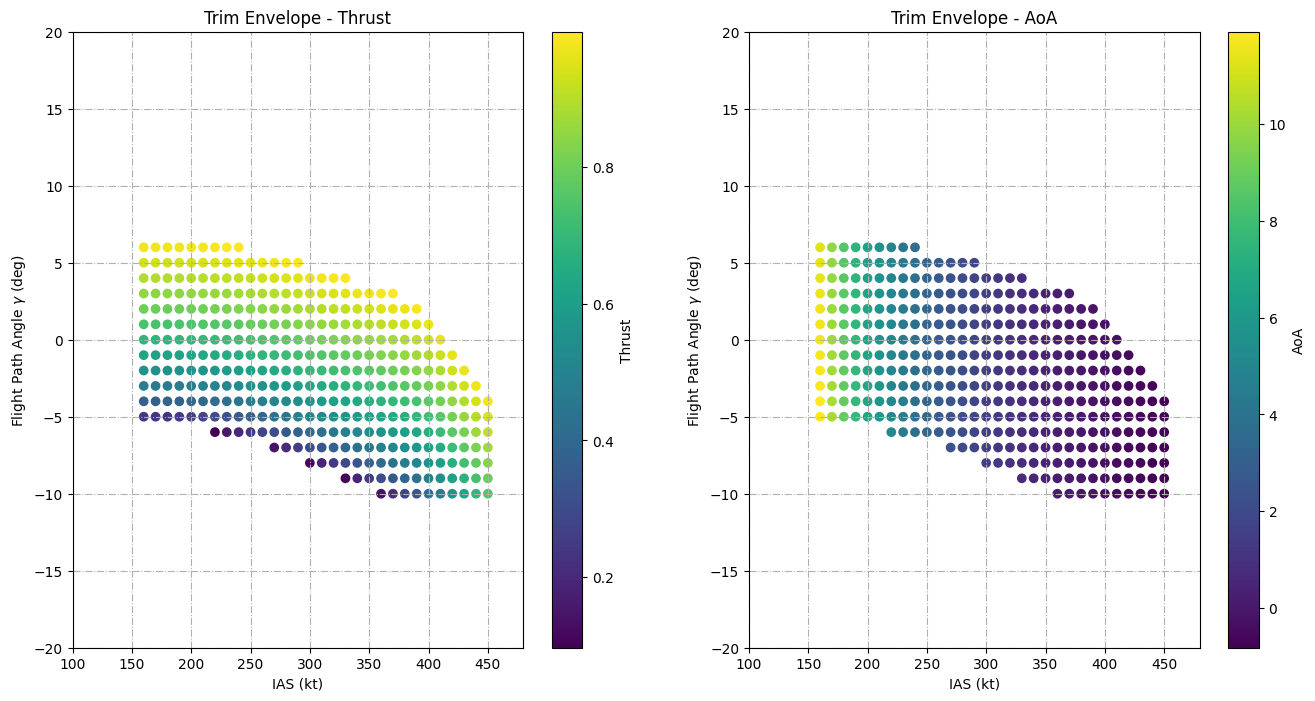

# --- Plot Results ---
# This section plots the simulation results.

# Extract the trim results
speed, alpha, gamma, throttle = zip(*results)

plt.rcParams["figure.figsize"] = (16, 8)  # Set the figure size for matplotlib plots.

# Plot the trim envelope results, with required thrust and AoA indicated via a colormap
fig, (axThrust, axAoA) = plt.subplots(1, 2)  # Create a figure with two subplots (thrust and AoA)

# Graph data for each of the sub plots (title, ax, data)
graph_data = [ ('Thrust', axThrust, throttle), ('AoA', axAoA, alpha) ]

for title, ax, data in graph_data:
    # Scatter plot with airspeed on x-axis, gamma on y-axis and either thrust setting or
    # AoA indicated via color map
    scatter = ax.scatter(speed, gamma, c=data, cmap='viridis')
    cb = fig.colorbar(scatter, ax=ax)  # Add a colorbar to the plot.
    cb.set_label(title)

    # Graph axis range for speed and gamma
    ax.set_xlim(min_speed - 20, max_speed + 20)
    ax.set_ylim(min_gamma * 2, max_gamma * 2)

    ax.grid(True, linestyle='-.')   # Add a grid to the plot.

    ax.set_xlabel('IAS (kt)')
    ax.set_ylabel('Flight Path Angle $\gamma$ (deg)')
    ax.set_title(f'Trim Envelope - {title}')

plt.show()  # Display the plot.

  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, wdot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable
  Sorry, udot doesn't appear to be trimmable

../_images/notebooks_09_trim_envelope_9_1.png
